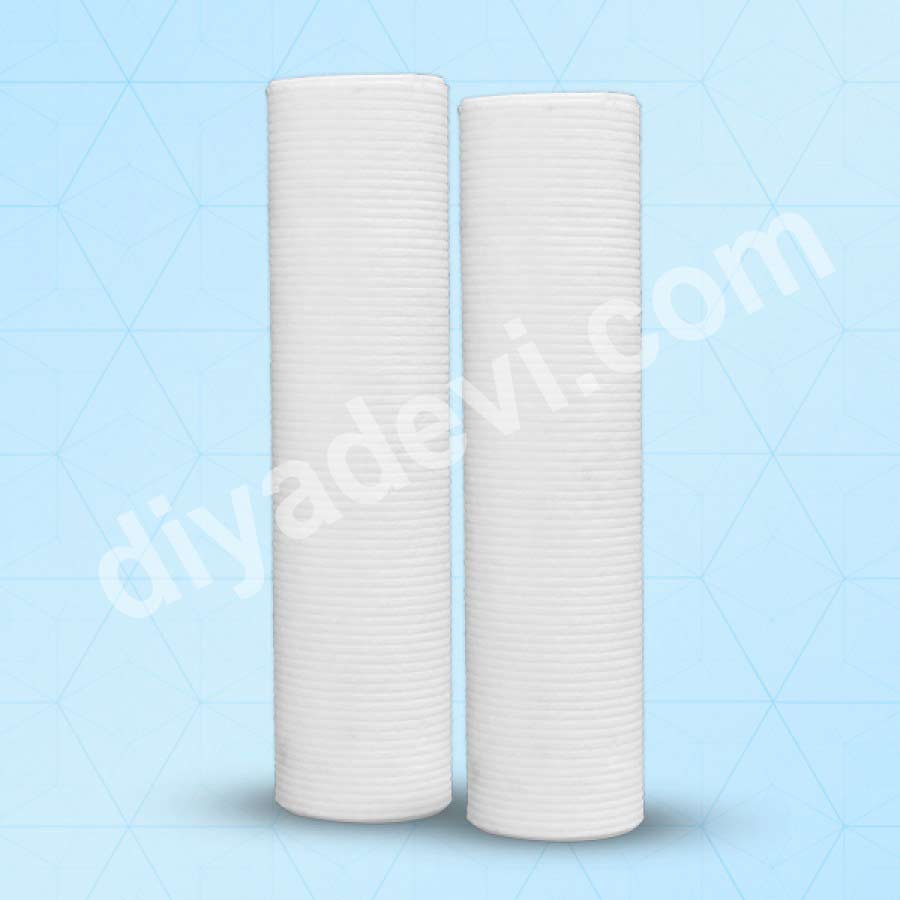

Polypropylene filter cartridges are precisely manufactured for use in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment & other demanding process industries. Polypropylene pleated cartridges use the very latest gradient density micro fiber media technology to provide a combination of excellent micron ratings, high flow rates and high contaminant holding capacities. A special combination of polypropylene media with variation in the fiber diameter creates a gradient density matrix, ranging from open on the outside to finer on the inside, thereby providing a filter with in filter, which considerably increases contamination holding capacity & throughputs. All components used in the manufacturing process are biologically safe, chemically inert and meet FDA and other international quality requirements. Polypropylene offers an extremely broad chemical compatibility making it suitable for many applications. • All polypropylene construction • Absolute & nominal efficiency • 0.1 to 40 Micron ratings • Gradient density micron fiber media • High surface area more than 0.5 m2 per 10" filter • Robust outer cage • Biologically safe • Wide chemical compatibility • No fiber migration • Thermally welded construction • FDA approved filters • End connections to fit all standard housings
Price as per Requirement
Vendor Details
Devi Traders & Fabricators
Deepak Bhatnagar
.png)
0 /5
(0 ratings)
Annual Turnover : Rs 3 Crore
Area of Expertise : Filteration
Product Specifications
Applications: |
Fine Chemicals and Pharmaceuticals • D.I. Water • R.O.Pre filtration • Biological Fluids • Oral Drugs • Ophthalmic Liquids Photographic Film & Paper • Anti-Halation Coatings • Developer Chemicals • Emulsions • Gelatins |
Beverages: |
• Wine • Alcohols • Fruit Juice • Beer |
Electronic and Semi-Conductor: |
De-ionized Water Prefiltation • Magnetic tapes • Premix Resins • Tape Coatings • Photoresists • Metal Oxide Dispersions • Solvents |
Construction: |
Filter Media 100 % Melt blown micro denier polypropylene fiber Support Media Polypropylene fiber Inner Core High strength polypropylene Outer Core High strength polypropylene End Caps High strength polypropylene O Ring / Gaskets EPDM / Buna N / Silicone / Viton |
Technical Specifications: |
Sizes 10”, 20”, 30”, 40” Long Micron Rating 0.1, 0.2, 0.45, 1, 5, 10, 20 Micron Outer Diameter 69 mm Inner Diameter 28 mm |
